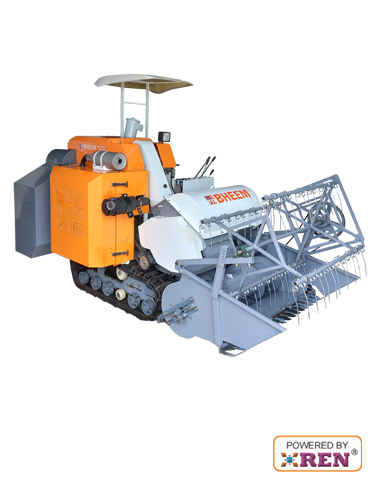

BHEEM Mini Combine Harvester Model BMH2500TA

BHEEM Mini Combine Harvester Model BMH2500TA

BHEEM Mini Combine Harvester Model BMH2500TA a indigenously designed and developed harvester, self- propelled, Track operated harvester powered by a powerful, reliable and fuel efficient Simpsons multi cylinder engine. BHEEM Mini Combine is a full straw feed, Axial flow threshing track type model combine harvester designed to harvest crops in single process (i.e to cut , thresh, clean and store / bag in single operation) . BHEEM harvester is equipped with Rugged cast iron gear box with, multi plate dry clutch with 6 forward and 2 reverse gears to suit various terrains and type of crops at Indian condition. BHEEM Mini Combine is equipped with 1200mm cutter bar for fast and easy coverage with high ground clearance and spread track. BHEEM Mini Combine is is suitable for all field conditions both dry and wet. BHEEM mini combine has Bagging model and Grain Tank model also.

BHEEM mini combine harvester can be used to harvest Paddy, Soyabean, Wheat , Pulses etc…

Technical Specifications#

Model BMH 2500 TA
Type Mini combine Harvester Track Drive
Engine power 25 Hp @ 2500 rpm
Engine Type Multi Cylinder, Water cooled, Diesel Engine
Starting Method Electric Start
Fuel Tank Capacity 20 L
TRANSMISSION Clutch Multi plate dry type
Track Spec 90 x35 x 280 mm
Track Width 940 mm
Transmission Gears 6 forward & 2 Reverse
THRESHING Type Axial Flow Type
Feed Type Full Straw Feed
Drum Size Outer 490 x 850 mm
Speed of propeller 1200 mm ( 3 to 5 Rows
Ground Clearance 200 mm
Weight 1100 K
Overall Dimensions 3100 x 1700 x 1610 mm
# Technical specifications are subject to change without prior notice.
